ProShell™ PP – Lightweight Mono-PP Microporous Laminate

ProShell™ PP is a lightweight waterproof and breathable laminate developed for active outdoor apparel, packable weather protection, and mono-material product design.

The system combines a microporous PP membrane with compatible PP face and backing textiles. Its engineered pore structure allows air and moisture vapor to move through the laminate while helping resist external liquid water and wind.

With its low-density construction, mechanical stability, and customizable 2L, 2.5L, and 3L formats, ProShell™ PP supports lightweight performance for cycling, fast hiking, trail apparel, and practical outdoor shells. By keeping the principal layers within the polypropylene family, it also reduces mixed-material complexity and supports future PP-oriented recovery pathways.

Lightweight

Breathable

Waterproof

ProShell™ PP

Lightweight Mono-PP Microporous Laminate

ProShell™ PP Series

ProShell™ PP is a lightweight waterproof and breathable laminate developed for active outdoor apparel, packable weather protection, and mono-material product design.

The system combines a microporous PP membrane with compatible PP face and backing textiles. Its engineered pore structure allows air and moisture vapor to move through the laminate while helping resist external liquid water and wind.

With its low-density construction, mechanical stability, and customizable 2L, 2.5L, and 3L formats, ProShell™ PP supports lightweight performance for cycling, fast hiking, trail apparel, and practical outdoor shells. By keeping the principal layers within the polypropylene family, it also reduces mixed-material complexity and supports future PP-oriented recovery pathways.

Lightweight Breathable Mono-PP

Microporous PP Technology for Active Outdoor Performance

ProShell™ PP uses engineered microscale pathways to balance waterproof protection with air and moisture-vapor transfer. Unlike monolithic TPEE membranes, which transport vapor through hydrophilic molecular diffusion, the PP membrane relies on a physical microporous structure. This gives ProShell™ PP a more direct airflow mechanism suited to high-output outdoor movement.

A filler-free PP membrane option can also create micropores through controlled crystalline stretching, reducing reliance on conventional mineral fillers while maintaining lightweight waterproof breathability.

Ultra-Lightweight

Low-density PP material system

Microporous Airflow

Physical air and vapor pathways

Stable Performance

Strength and dimensional control

Mono-PP Design

Simplified polypropylene architecture

Core Advantages

Lightweight PP Construction The low density of polypropylene supports lightweight laminate structures for portable and movement-focused outdoor products.
Physical Air & Vapor Transfer Microporous pathways allow air and moisture vapor to escape while helping prevent external liquid water penetration.
Stable Mechanical Performance PP provides useful tensile strength, dimensional stability, and processing consistency for lamination and garment conversion.
Mono-PP Material Direction PP membrane, PP face textile, and PP backing materials can be combined to reduce incompatible polymer combinations.

Mono-PP Circular Design

ProShell™ PP can be developed around a polypropylene-oriented material structure:

  • Face layer: PP woven, knitted, or lightweight technical textile
  • Functional layer: Microporous or filler-free PP membrane
  • Backing layer: PP knit, tricot-style textile, or lightweight nonwoven

Aligning the main layers around PP makes the laminate easier to identify and sort and can support selected plastic-to-plastic recovery pathways. A polypropylene structure using PP membrane and PP textile layers is also consistent with the material-compatibility approach described in the recyclable laminate framework.

* Actual recyclability still depends on adhesive chemistry, surface finishes, printing, seam tapes, garment components, collection systems, and local recycling capabilities.

Recommended Sustainability Wording

"Designed with a mono-PP laminate architecture to reduce mixed-material complexity and support future polypropylene recovery pathways."

Application Fit

Lightweight Trail Shells Low-density protection for active trail movement and changing weather.
Cycling & Fast Hiking Physical air and moisture-vapor transfer for high-output outdoor activity.
Packable Weather Protection Lightweight, practical protection for portable jackets and outdoor equipment.
Additional Applications
  • Lightweight rain shells
  • Cycling jackets
  • Trail-running outerwear
  • Fast-hiking apparel
  • Outdoor work jackets
  • Packable protective garments
  • Mono-PP apparel concepts

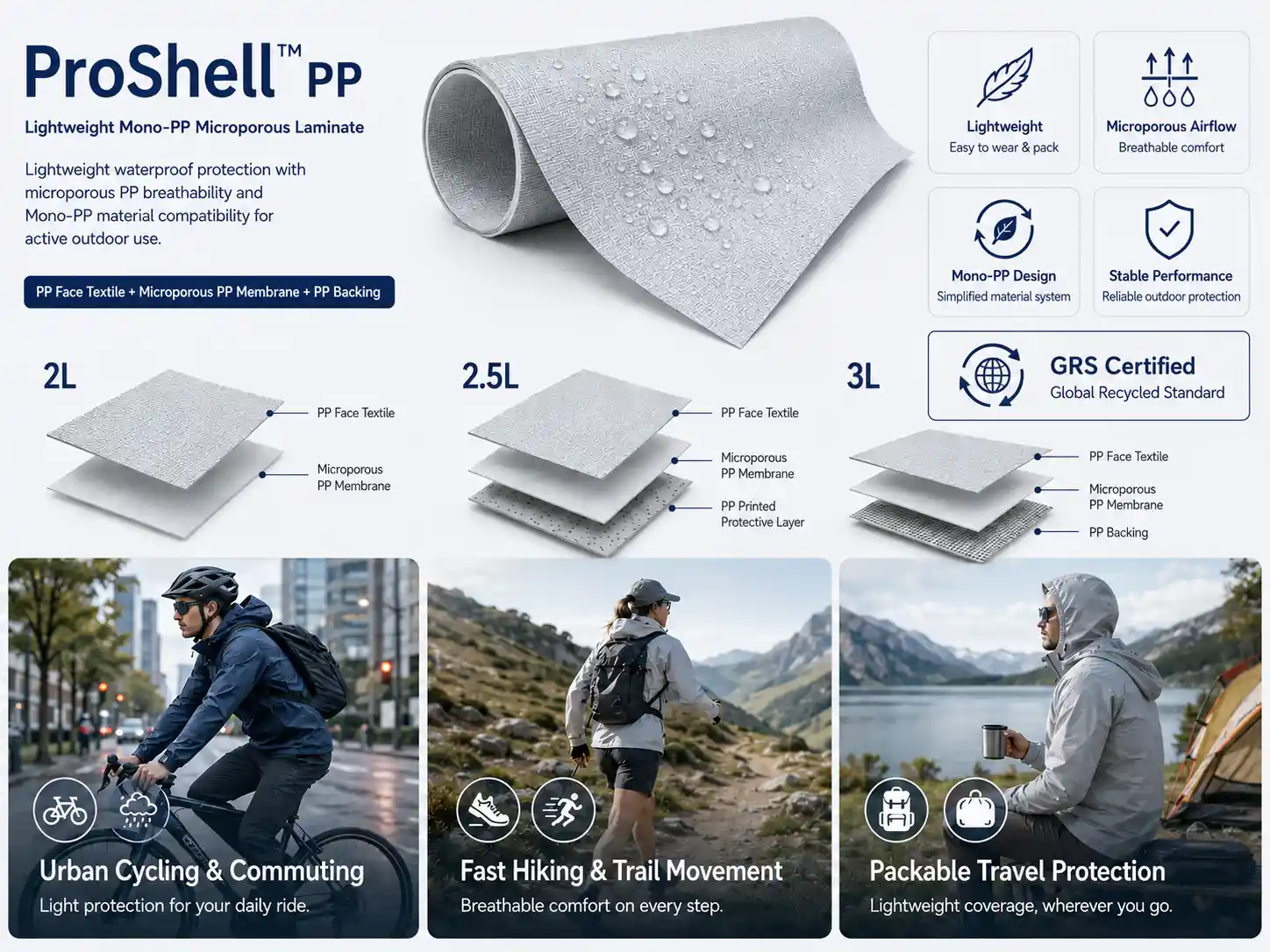

Construction Options

2-Layer

PP face textile + microporous PP membrane

A lightweight structure for garments using a separate inner lining.
2.5-Layer

PP face textile + PP membrane + protective half layer

Reduces overall laminate weight while protecting the inner membrane surface. The protective print or coating should be selected according to the intended PP recovery pathway.
3-Layer

PP face textile + PP membrane + PP backing

Creates the most complete Mono-PP structure, with added membrane protection and dimensional stability.

Material Comparison

PP vs Alternative Material Comparison

Specification

Brand ProShell™
Product Form Lightweight Waterproof & Breathable Laminated Roll Goods
Material PP Face Textile + Microporous PP Membrane + PP Backing
Structure  2-Layer / 2.5-Layer / 3-Layer
Breathability Mechanism Microporous Physical Air & Moisture-Vapor Transfer
Barrier Properties Waterproof, Wind-Resistant & Breathable
Surface Treatment Water-Repellent / UV-Resistant / Custom Color & Printing Options
Weight Customizable According to Textile, Membrane and Layer Construction
Overall Width 80 - 2000 mm (Precision Slitting Available)
Length 300 - 1500m
Application
Cycling, Fast Hiking, Trail Shells and Packable Outdoor Protection
Request a Sample

Redefining the Boundaries of Breathable Technology

Why Choose Kae Hwa’s ProShell™PP for Extreme Protection

With more than six decades of experience in breathable membranes and functional lamination, Kae Hwa Industrial developed ProShell™ PP for brands seeking lightweight weather protection with a simplified material architecture.

The system combines a microporous PP membrane with compatible PP face and backing textiles, balancing waterproof performance, moisture-vapor release, mechanical stability, and reduced mixed-material complexity. Available in customizable 2L, 2.5L, and 3L constructions, ProShell™ PP supports active outdoor apparel and next-generation Mono-PP product development.

Mono-PP Material Architecture: Aligns the membrane, face textile, and backing around the polypropylene family to simplify material identification and recovery planning.

Microporous Breathability: Engineered microscale pathways allow air and moisture vapor to escape while helping resist external liquid water.

Lightweight & Stable: PP’s low-density material direction supports portable garments without sacrificing dimensional stability or processing reliability.

Cleaner Production Options: Solvent-free lamination and GRS-documented recycled-material options can support lower-emission and traceable product development where applicable.

Flexible Product Development: Customizable in 2L, 2.5L, and 3L structures, with options for color, printing, surface treatment, backing, and garment-conversion requirements.

About Us
Engineering Reliable Protection Through Precision

FAQ

ProShell™ PP is a lightweight waterproof and breathable laminate that combines a microporous PP membrane with compatible polypropylene textile layers.

It is designed for active outdoor apparel requiring moisture management, weather protection, low weight, and reduced mixed-material complexity.

The microporous PP membrane contains engineered microscale pathways that allow air and moisture vapor to move outward while helping block larger liquid-water droplets.

This physical transfer mechanism differs from the molecular diffusion used by monolithic TPEE membranes.

ProShell™ PP is designed around a Mono-PP material direction, which can simplify identification, sorting, and selected polypropylene recovery processes.

However, actual recyclability also depends on adhesives, coatings, inks, water-repellent finishes, seam tapes, garment accessories, contamination, collection systems, and available recycling facilities. It should therefore be described as designed for recyclability, rather than universally recyclable.

ProShell™ PP uses a microporous polypropylene membrane and focuses on lightweight construction, physical airflow, and Mono-PP material compatibility.

ProShell™ TPEE uses a monolithic hydrophilic membrane and focuses more strongly on soft, quiet movement, flexible drape, and compatibility with polyester textile systems.

ProShell™ PP can be developed in:

  • 2L: PP face textile + microporous PP membrane
  • 2.5L: PP face textile + PP membrane + protective half layer
  • 3L: PP face textile + PP membrane + PP backing

Typical applications include cycling shells, fast-hiking jackets, trail apparel, urban commuting outerwear, packable travel protection, and Mono-PP garment concepts.
