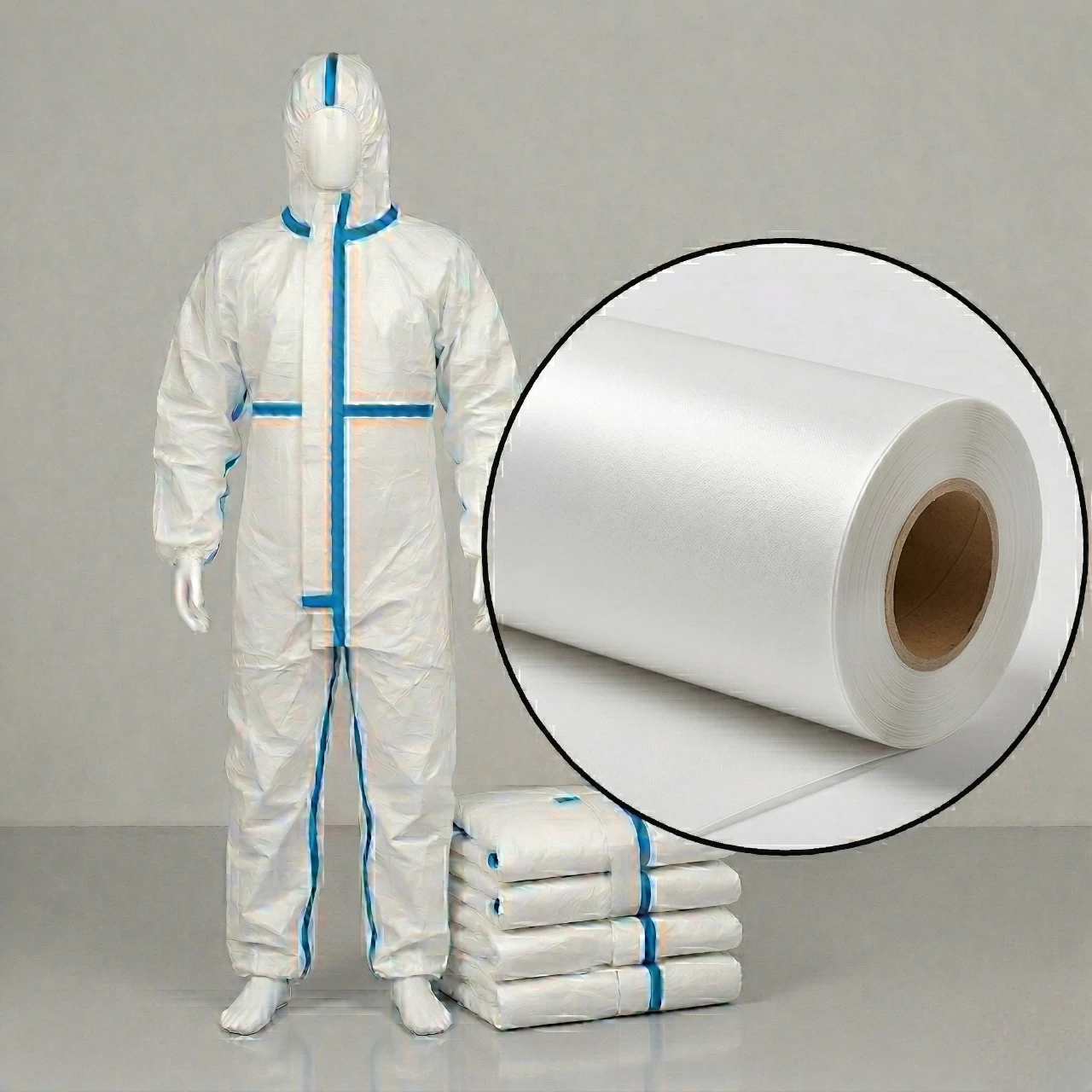

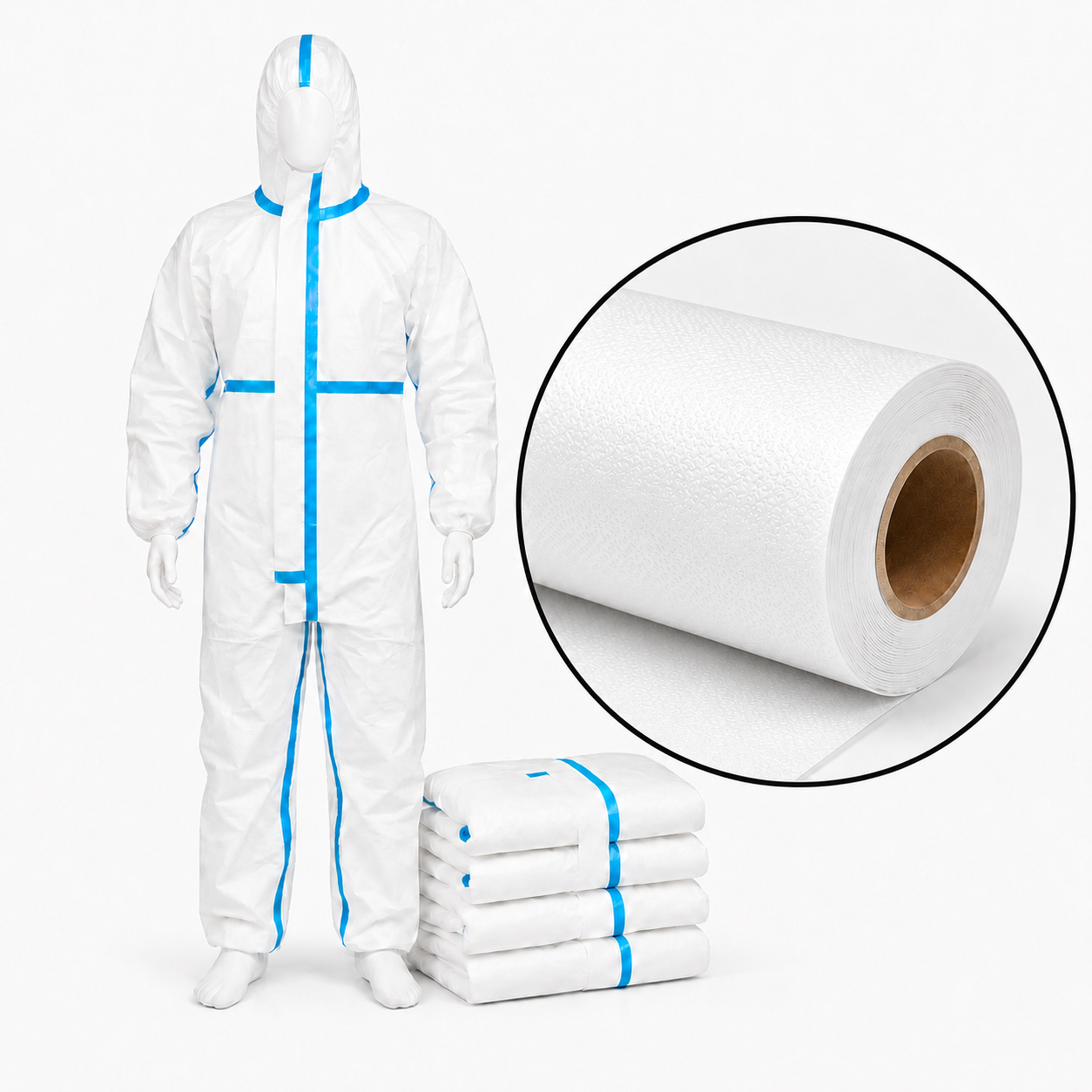

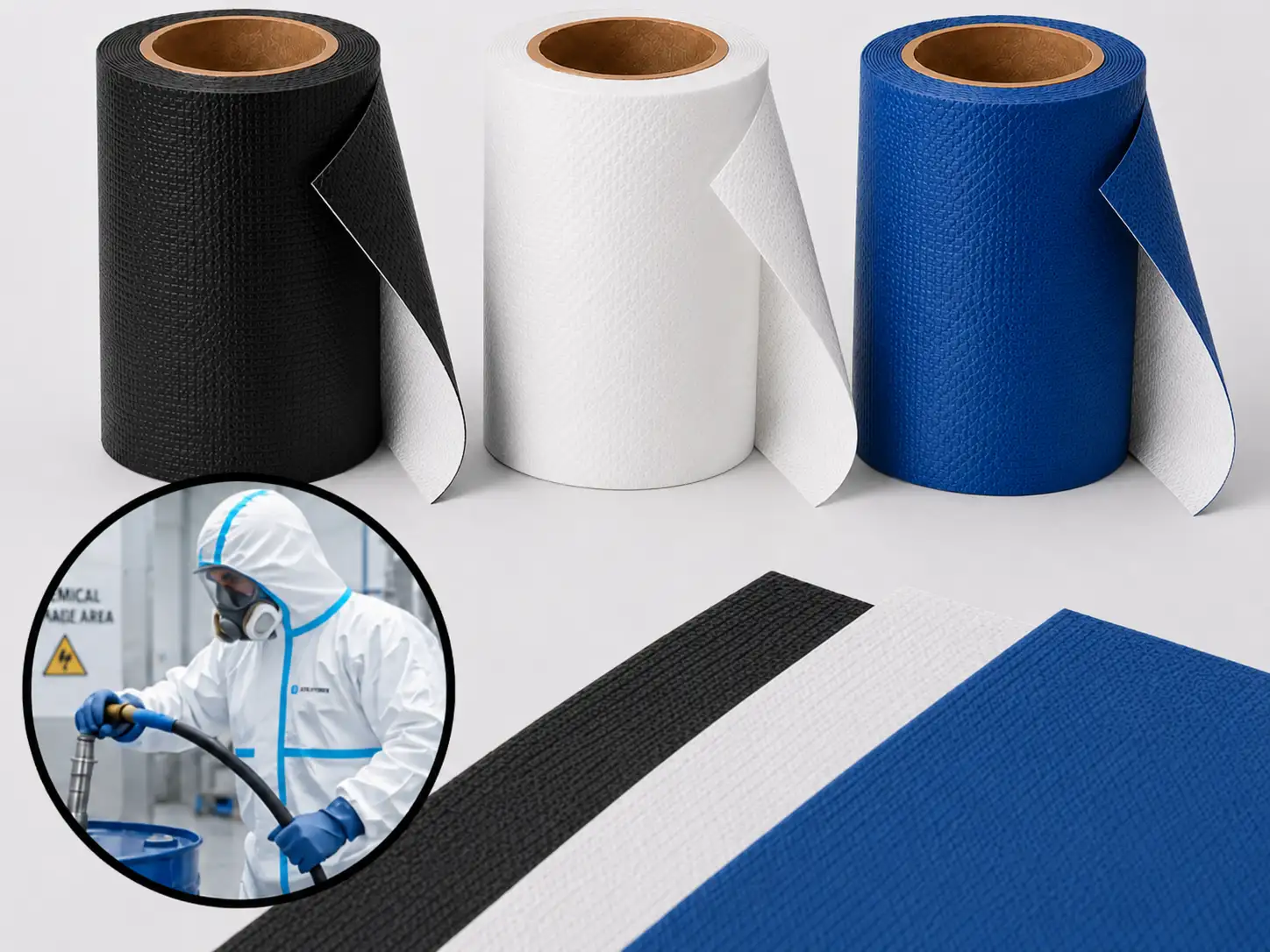

InduBarrier Type 4B is a high-performance protective fabric for extreme industrial and medical environments. It combines waterproof protection, chemical splash resistance, breathability, and antistatic properties to ensure safety and comfort in demanding applications like chemical handling and emergency response. Certified to CE Type 4B and EN 14126, it offers superior barrier performance and durability for high-risk industries.
InduBarrier™ Type 4B is engineered for protective garments used in environments involving sustained or directional liquid chemical spray exposure, contaminated liquids, and biological hazards.

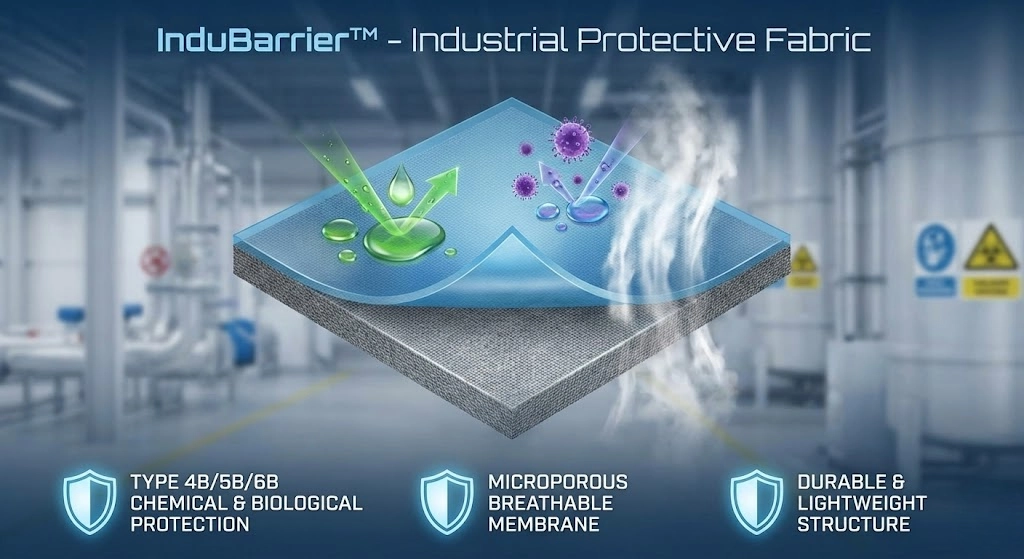

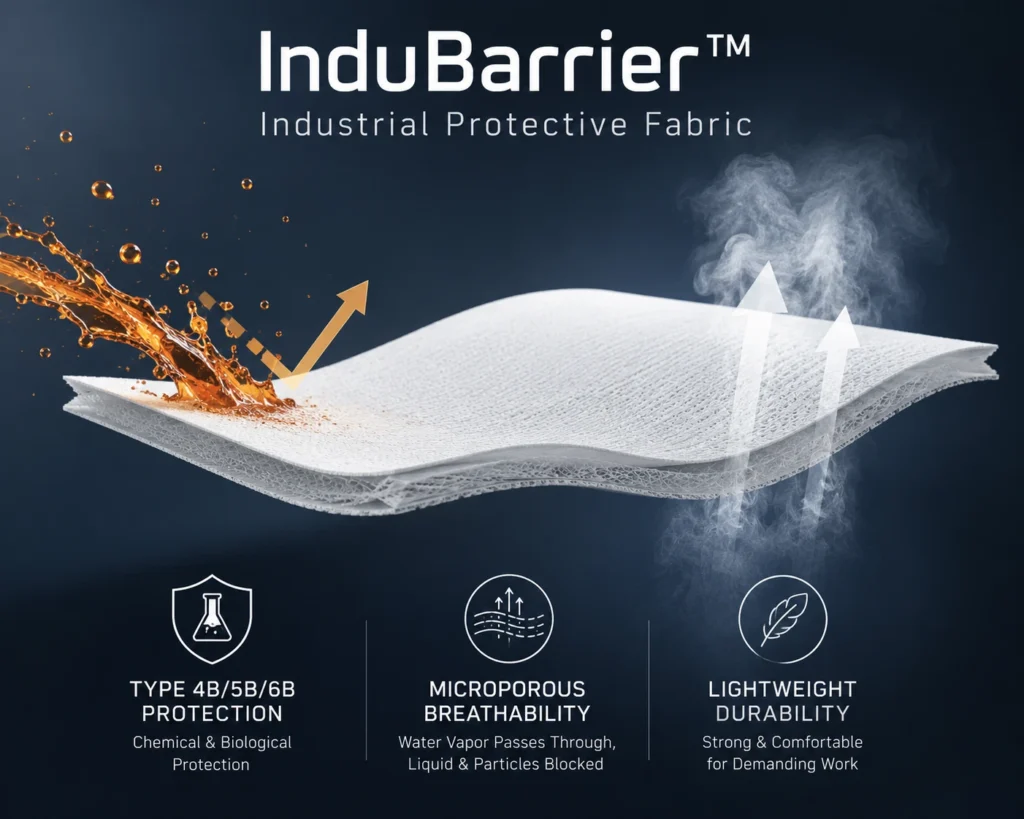

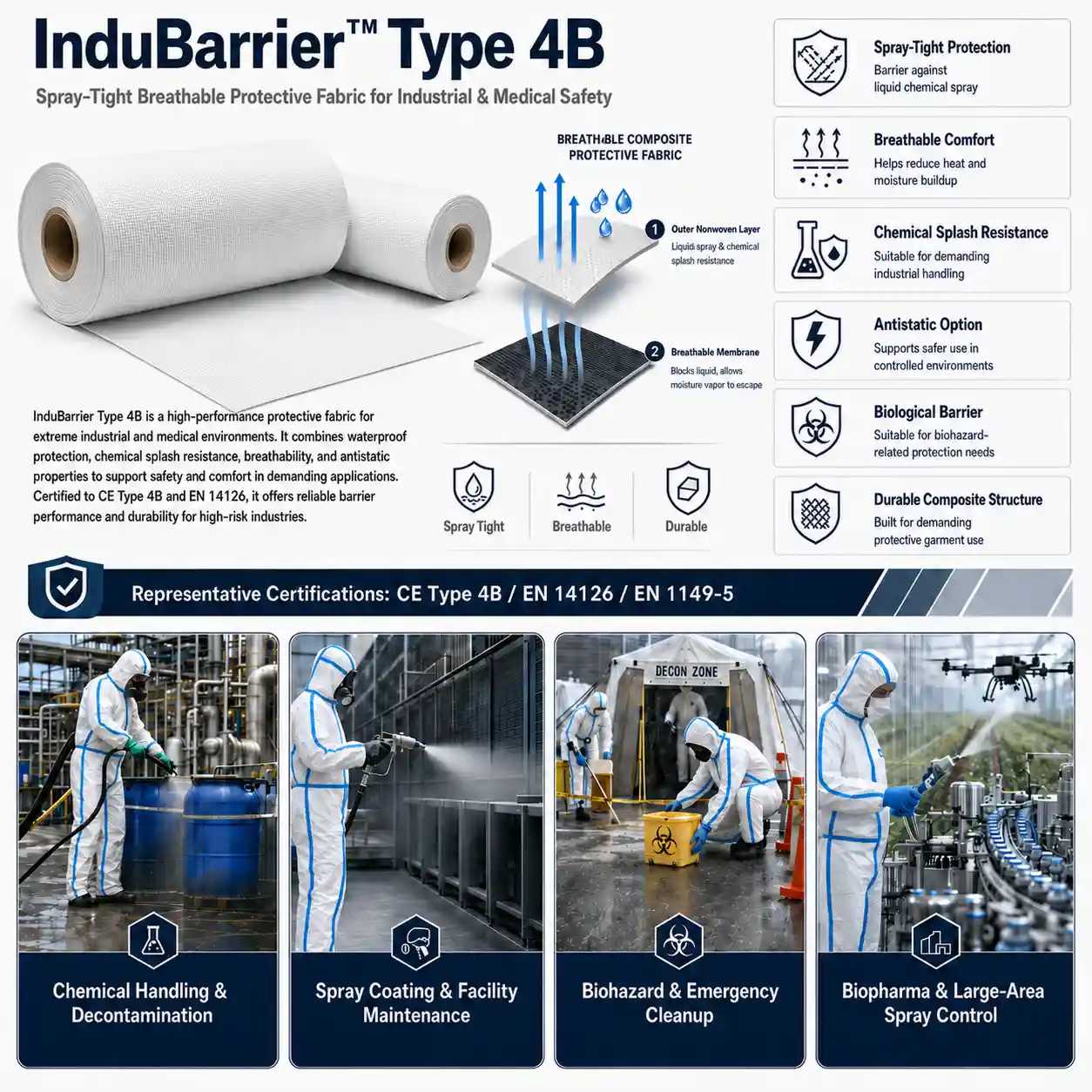

Its microporous breathable film and nonwoven composite structure helps block liquid sprays and contaminants while allowing moisture vapor generated by the wearer to escape.
Kae Hwa’s InduBarrier™ Type 4B protective garment platform has also been verified to meet Type 5B and Type 6B requirements, providing broader protection coverage within one protective system.
InduBarrier™ Type 4B is developed primarily for spray-tight liquid protection. Kae Hwa’s Type 4B protective garment platform has also been tested and verified for Type 5B and Type 6B requirements.
In practical garment selection, this verified protection coverage allows the InduBarrier™ Type 4B platform to support a broader range of industrial exposure conditions.
Type 4B, Type 5B, and Type 6B remain separate complete-garment classifications. Buyers should confirm that the supplied garment model and certification documentation cover the stated protection types.
"Spray-tight Type 4B protection with verified Type 5B particle and Type 6B limited-splash coverage."
Nonwoven + Microporous Breathable Film
A streamlined laminate designed to balance spray barrier performance, flexibility, mechanical support, and overall material weight.Nonwoven + Microporous Breathable Film + Nonwoven
Provides additional structural support for protective garments requiring enhanced durability and material stability.PE / PP Breathable Film & Nonwoven Combinations

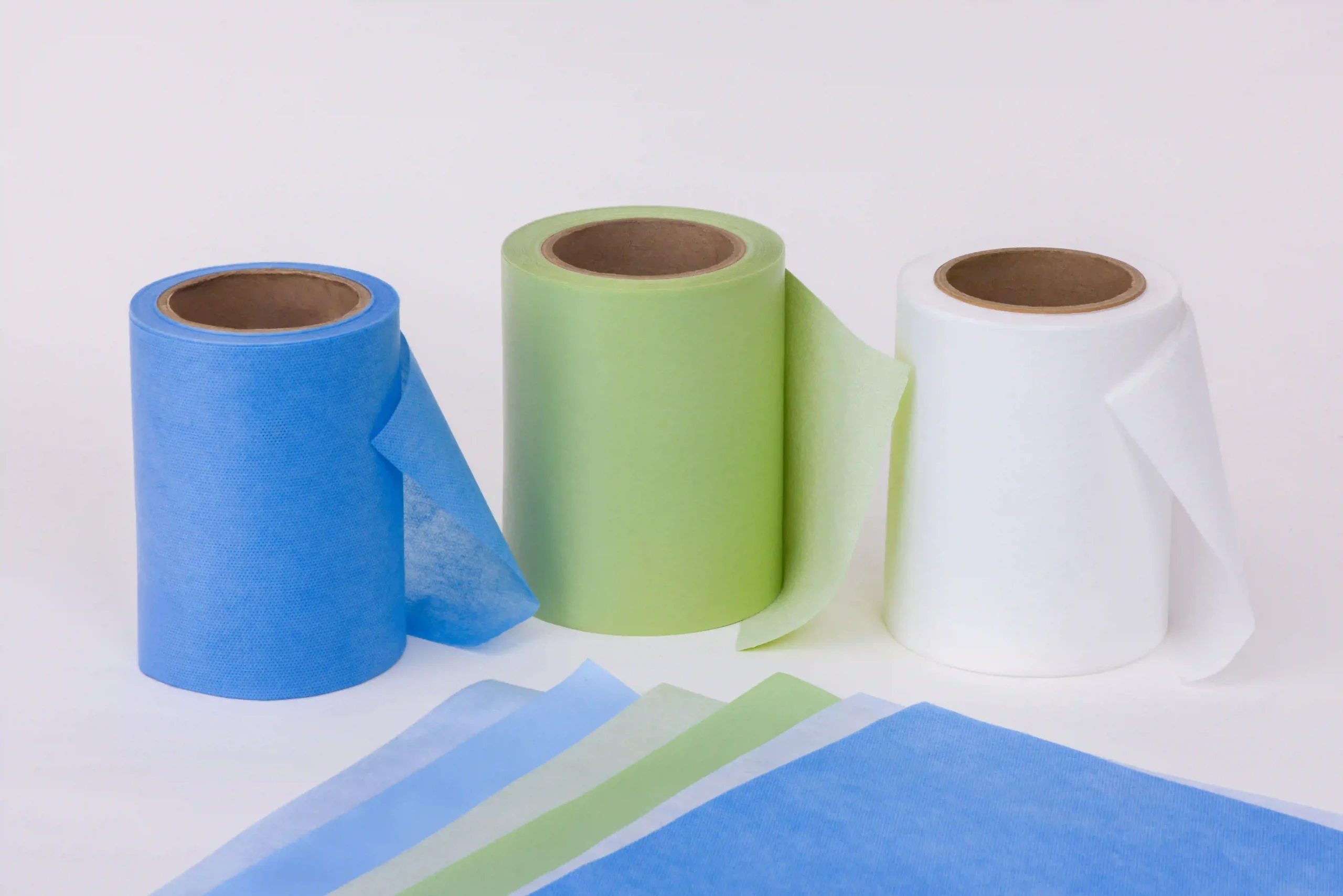

Film formulation, nonwoven structure, adhesive pattern, color, and antistatic treatment can be selected according to project requirements.43–100 gsm / Custom Width / Color / Printing
Material configurations can be evaluated according to target garment design, basis weight, width, color, printing, and processing requirements.Type 4B is positioned for demanding spray-tight liquid protection, while Type 5B focuses on hazardous particles and Type 6B addresses limited liquid splash exposure.

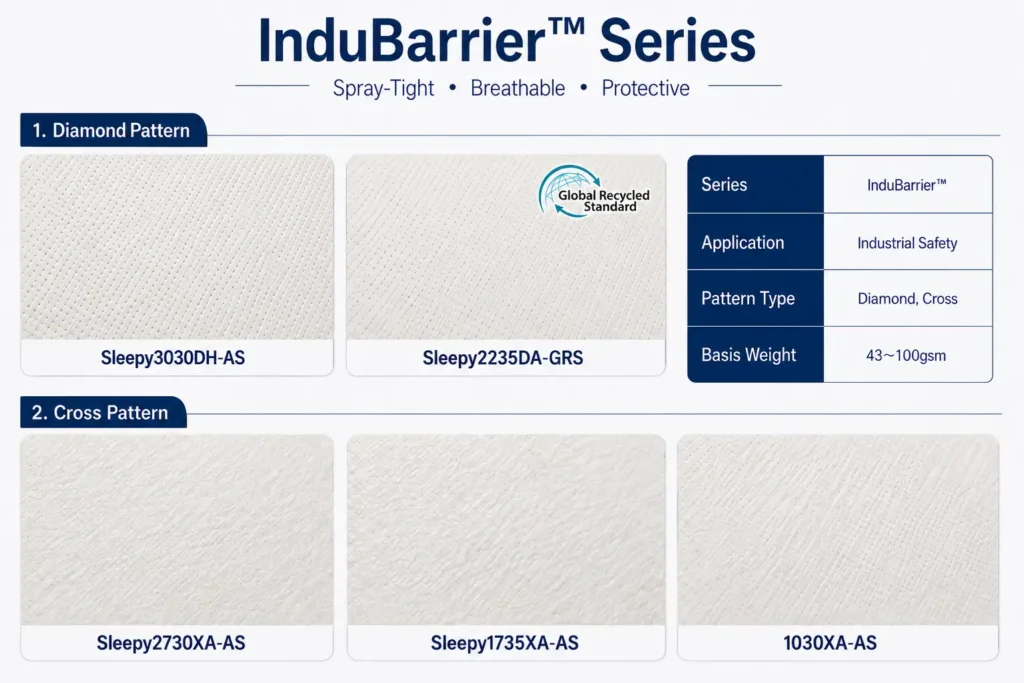

| Representative Grade | Basis Weight | Reference Width | Product Positioning |
|---|---|---|---|
| Sleepy 1030XA-AS | 43 gsm | 1,524–1,550 mm | Lightweight grade for short-duration or lower-load applications. |
| Sleepy 2230DA-AS | 55 gsm | 1,524–1,550 mm | Balanced protection and wearing comfort. |
| Sleepy 2435DA-AS | 62 gsm | 1,524–1,550 mm | Enhanced durability and barrier performance. |
| Sleepy 30Y50DH-AS | 83 gsm | 1,524–1,550 mm | Colored, high-durability grade for more demanding environments. |
| Brand | InduBarrier™ |
| Product Form | Roll |
| Material | Breathable PE/PP Film + Nonwoven Fabric |
| Structure | 2-Layer or 3-Layer Microporous Composite |
| Breathability Mechanism | High Vapor Permeability |
| Barrier Properties | High Hydrostatic Pressure Resistance, Chemical & Particulate Barrier |
| Surface Treatment | Corona / Anti-static / Custom Color (White, Blue, Green, Yellow, Khaki, Black) & Printing |
| Weight | 43 - 100 gsm |
| Overall Width | 80 - 2000 mm (Customizable) |
| Length | 300 - 1500 m |

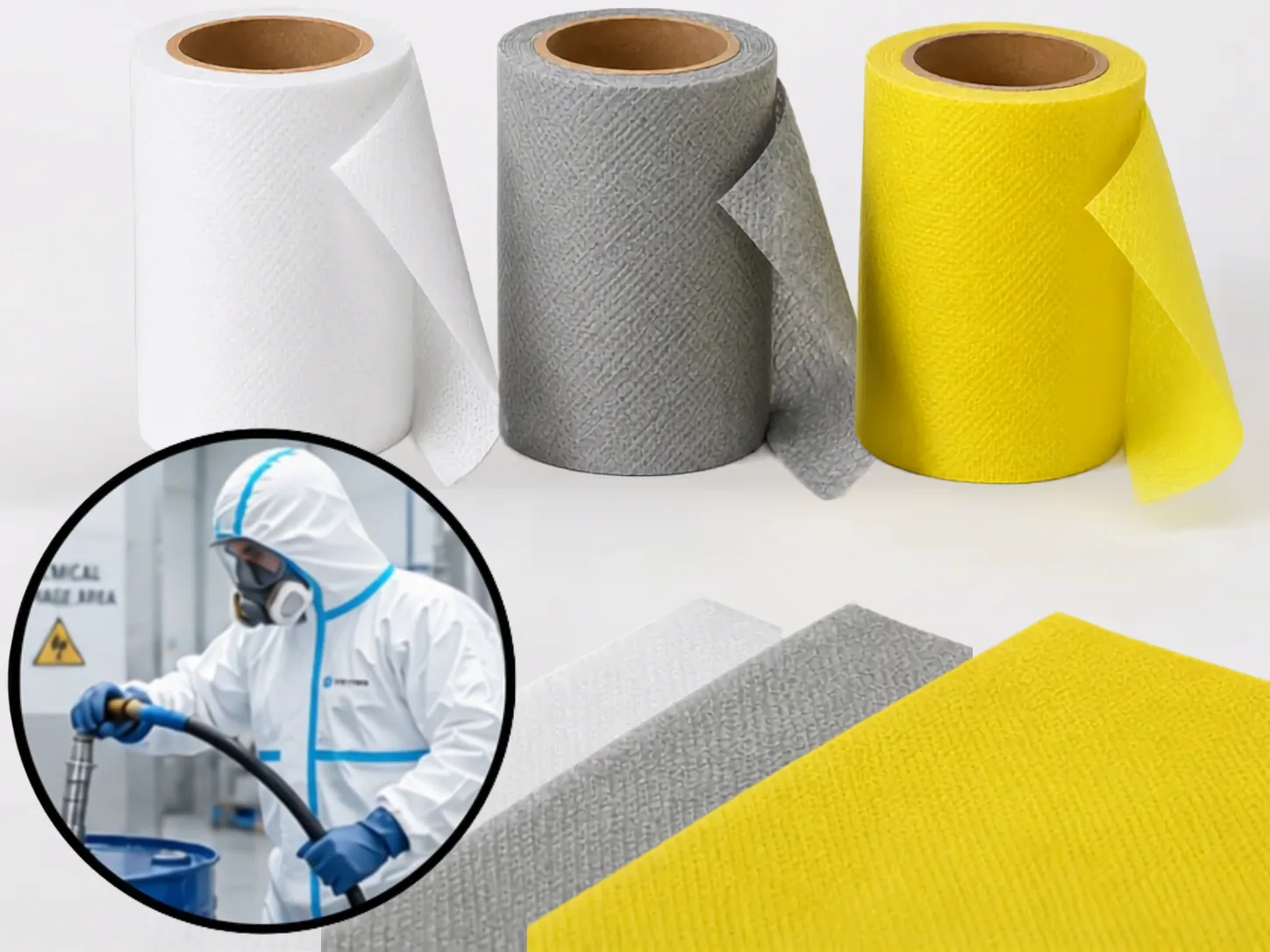

| Application | Type 4B Coveralls, Industrial Protective Apparel |
It is engineered for high-risk industrial and medical applications, including chemical handling, asbestos removal, biohazard cleanup, and emergency response.
It is fully certified to CE Type 4B, 5B, and 6B for liquid spray and particulate protection, EN 14126 for biological hazards, and EN 1149-5 for antistatic safety.
Yes. The microporous structure maintains a moisture vapor transmission rate (WVTR) of 2,000–5,000 g/m²·24hr, allowing body heat to escape while providing a reliable liquid-tight barrier against toxic spills.
Meeting EN 1149-5 standards, the fabric prevents electrostatic discharge. This is a mandatory safety feature for preventing sparks in explosive or highly flammable chemical environments.
We offer customizable basis weights (43–100 gsm), thicker profiles (180–300 μm) for extreme durability, and industrial color options including Khaki and Black, alongside specialized anti-static or printing surface treatments.
